Range
Low Voltage Converters
With its SINAMICS family, Siemens has a portfolio of low-voltage converters for a power range extending from 0.12 kW all the way up to 6840 kW. These innovative devices can address an extremely wide range of drive applications. The family includes converter types for the most basic of requirements – but also models that are designed to achieve the highest dynamic performance for multi-axis applications and for machine tools. All of these converters can be seamlessly integrated into the overall automation landscape. They all have the same basic open-loop and closed-loop control structure, are parameterized in the same way and have the same communication options.
View details →

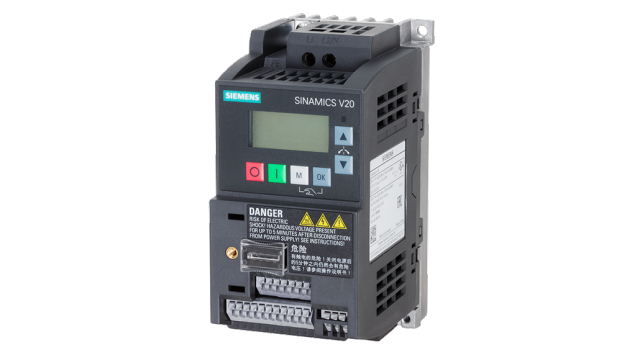

SINAMICS V20
The compact SINAMICS V20 is the frequency converter for simple motion sequences. It is characterized by its short commissioning times, easy handling, and energy-saving functions. The converter with its nine sizes covers the power range from 0.12 kW to 30 kW.
View details →
SINAMICS G120C
The SINAMICS G120C combines an extremely compact design with integrated safety function and a wide range of functions for diverse applications. With seven frame sizes, it covers a power range from 0.55 to 132 kW.
View details →
SINAMICS G120
The SINAMICS G120 is a modular frequency converter for the most diverse drive tasks. The modular structure of the components and the wide power range from 0.55 to 250 kW ensure that you are always able to assemble the ideal converter for your individual applications and industry branche. This series of converters is available in three voltage variants for connection to 200 V, 400 V and 690 V networks. In addition, the SINAMICS G120 features a comprehensive machine safety package. SINAMICS Startdrive is used for commissioning the safety functions.
View details →

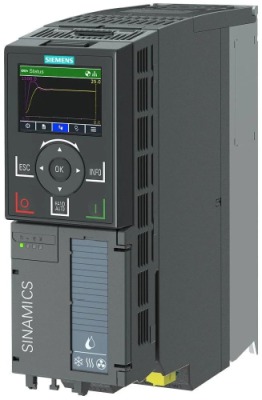

SINAMICS G120X
The SINAMICS G120X converter is optimized for pump and fan applications in the water/wastewater industry as well as HVAC applications in building automation. This makes SINAMICS G120X the first choice for users who want to tap on the power of the elements to improve the quality of people’s lives. Part of a complete and seamless family of products, the frequency converter meets practically every requirement.
View details →
SINAMICS G130 / G150
SINAMICS G130 chassis units and SINAMICS G150 cabinet units have been designed for variable-speed drives in machine building and plant construction. They have been specially tuned to the requirements of drives with quadratic or constant load characteristics with medium performance requirements without regenerative feedback. The control accuracy of the sensorless vector control is suitable for most applications, and additional actual speed value encoders are therefore superfluous. SINAMICS G130/G150 offer an economical drive solution which can be matched to the respective customer requirements by a wide range of components and options.
View details →
SINAMICS S120
The modular SINAMICS S120 drive is the modular system for high-performance motion control applications in industrial plant and machinery construction. Customized solutions can be implemented based on a wide range of components and functions that are optimally coordinated with one another. For instance, high-performance single-motor drives and coordinated drives (multi-axis applications) with vector or servo functionality. Users of the SINAMICS S120 drive will benefit from a system that offers higher performance, enhanced productivity and improved flexibility.
View details →

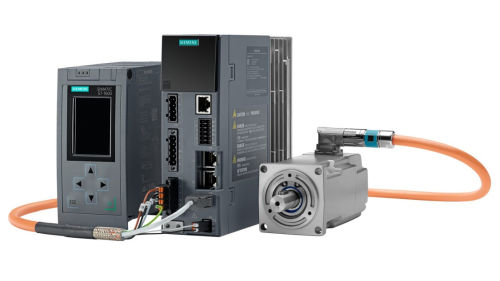

SINAMICS S210 Servo
The SINAMICS S210, servo drive system comprises a servo converter and a servomotor – and mainly addresses servo solutions demanding a high dynamic performance in the power range from 50 W up to 7 kW. Engineering this servo drive system is almost effortless. All servo system components are connected using the One Cable Connection. The safety functions for machine safety are already integrated in the SINAMICS S210 servo drive. The connection to the higher-level control is established via PROFINET IRT communication, fast commissioning via the TIA Portal or the integrated web server and One Button Tuning. SINAMICS S210 servo drive – the perfect team comprising a servomotor and a servo converter.
View details →

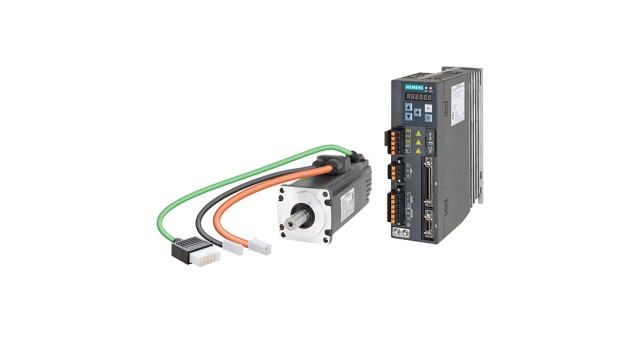

SINAMICS V90 Servo
The drive system comprises the SINAMICS V90 servo converter and the SIMOTICS S-1FL6 servo motor. The system features eight converter frame sizes and seven motor shaft heights to cover a power range of 0.05 to 7.0 kW for operation in single-phase and three-phase networks. It can be integrated easily via PTI, PROFINET, USS or Modbus RTU. The SINAMICS V90 servo drive system enables a host of simple motion control tasks to be implemented cost-efficiently and conveniently with the focus being on dynamic motion and processing.
View details →SINAMICS Standard Performance Frequency Converter
SINAMICS G120
The modular multifunctional frequency converter
SINAMICS G130/G150
The universal converter for high power ratings
SINAMICS V20
The compact basic performance converter
SINAMICS G120C
The compact versatile frequency converter
SINAMICS S120
The flexible and powerful drive system
SINAMICS V90
The performance-optimized and easy-to-operate servo drive system
SINAMICS G120X
The converter for all water and air applications
SINAMICS S210
The SINAMICS S210 servo drive
