SINAMICS G120X
The converter for all water and air applications

SINAMICS G120X: Master the elements

Highlights

Tutorial

In this tutorial series you will learn everything you need to know about the SINAMICS G120X frequency converter, from selection and ordering to the setup of different modes.

Harness the power of the elements

SINAMICS G120X is optimized for pump and fan applications in infrastructure projects.

With SINAMICS G120X, users tap on the power of the elements for everyone’s benefit.

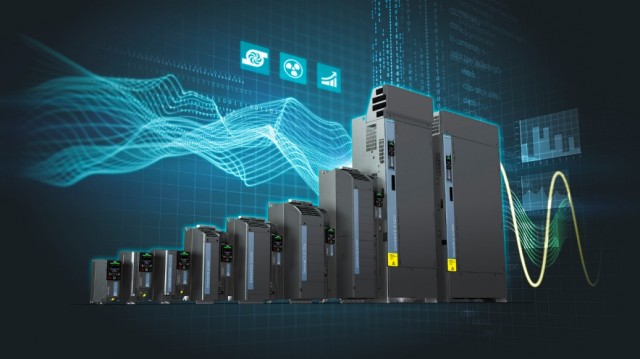

The new frequency converter comes as a complete product series – standardized and seamless when it comes to all supply voltages and supply types, and available in a power range extending from 0.75 kW to 630 kW. The devices are in compliance with global EMC standards and motor cable lengths of up to 150 m are permissible while maintaining EMC limit values. The integrated Safe Torque Off (STO) safety function is certified according to SIL3.

Thanks to its rugged design with optional protection against dripping water, SINAMICS G120X can be used in harsh conditions. The frequency converter can also be operated under environmental conditions according to the 3C3 standard.

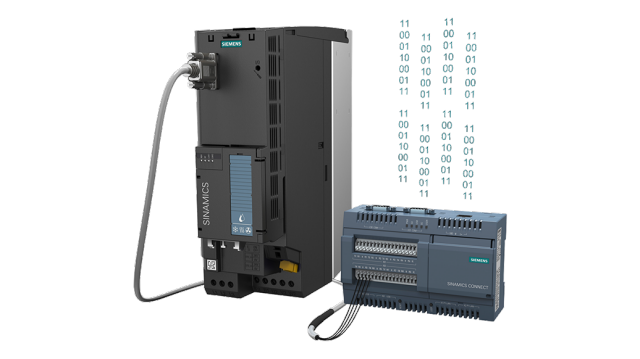

Thanks to its connection to the Cloud with SINAMICS CONNECT 300, SINAMICS G120X also prepares your drive application for digitalization.

SINAMICS G120X – Master the elements in infrastructure applications

Specific functions for your field of application

Specific functions for water / wastewater applications

SINAMICS G120X provides a deragging function to sustainably remove deposits and dirt from pump impellers. The pipe filling mode allows pipes to be gently filled at the beginning of the control process before going into closed-loop controlled operation. The innovative cavitation detection function protects pumps and reduces maintenance costs. The keep running mode reduces the speed before a possible shutdown. Multipump operation (staging) allows several pumps to be controlled from just one frequency converter. Many additional functions, directly supported by the converter, makes SINAMICS G120X universally applicable in infrastructure projects.

Specific functions for HVAC applications

The flying restart function reduces starting times after brief power failures. SINAMICS G120X also provides an automatic restart function after power failures. The essential service mode maintains fan operation for smoke extraction systems or emergency ventilation systems for as long as required in extreme situations. Multipump operation (staging) allows for the control of several pumps with just one frequency converter.

Skipping critical motor speeds is another HVAC-specific feature. This reduces vibration and, in turn, premature wear.

SINAMICS G120X also provides a real-time clock for autonomous, time-controlled operation as well as a timestamp for fault and alarm reports.

System overview

Feature

Voltage /
Power range

Frequency

Control modes

Communications

Value

3 AC 200 V – 240 V, -20% / +10%, 0.75 – 55 kW / 1.0 – 55 hp

3 AC 380 V – 480 V, -20% / +10%, 0.75 – 560 kW / 1.0- 700 hp

3 AC 500 V – 690 V, -20% / +10%, 3.0 – 630 kW / 4.0 – 700 hp

47 / 63 Hz +/- 5%

V/F (linear, square law, FCC, ECO), sensorless vector control (SLVC)

PROFINET, PROFIBUS, EtherNet/IP, Modbus RTU/USS, BACnet MS/TP, Wi-Fi via Smart Access Module

Overview of strengths

Attractive from every perspective – and fit for the future

The SINAMICS G120X series offers precisely the features that are required when addressing infrastructure applications. You get everything that you need to harness the power of nature – for everyone’s benefit.

• Convincingly simple
• Reliable and rugged
• Efficient

Delivered installed and ready-to-run with all essential features

When developing this new series of frequency converters , we placed the emphasis on simplicity – in every respect. So that you can quickly integrate SINAMICS G120X into your drive application.

• Simple ordering (see the ordering systematics at the bottom)
• Simple integration into existing applications
• Simple commissioning (using the multi-color IOP-2 operator panel or Smart Access Module)
• Simple operation, setup and settings
• Simple connection to the Cloud using SINAMICS CONNECT 300
• Simple maintenance: SINAMICS G120X indicates when service is required (using the Analyze MyDrives MindSphere application)
• Simply flexible: SINAMICS G120X can be operated with any motor – but most effectively with Siemens synchronous-reluctance motors

So that your drive application is always available

We have done a lot to adapt the reliability and the ruggedness of the SINAMICS G120X to address globally increasing customer requirements. This means that the frequency converter always operates with a high degree of stability – even during line supply fluctuations. To reduce harmonics, up to a power of 250 kW, devices have an integrated DC link reactor.

SINAMICS G120X is rugged and can operate in almost any environment: its operating temperature extends from -20°C up to 60°C (depending on the exact version). The converter complies with IP20 with an option for IP21 in UL open type. Coated modules are standard, 3C3 pollutant resistance is optionally available.

In addition, a comprehensive service portfolio is available to increase the availability and operation of the system. For the SINAMICS G120X, there is the option of an extended warranty up to 7 ½ years, various migration services and digitalization services.

So that your drive application is cost effective

To be both effective and cost efficient – these are key criteria for ideal converter operation. Both aspects have huge significance when it comes to state-of-the-art drive applications. The features with which we have maximized the efficiency of SINAMICS G120X have been appropriately optimized.
The frequency converters have an efficiency exceeding 98%. The flexibility of the converters when selecting an appropriate motor is also a big plus: The converter allows high-efficiency motors to be used for maximum energy-saving operation. For low dynamic loads, the ECO mode ensures the best possible performance and lowest losses for low dynamic loads. It also optimizes the output power to reduce the energy consumption of the driven load.
The bypass function* allows the motor to be switched between converter and line operation to reduce energy consumption. The energy/flow calculator calculates energy saving and the flow value without requiring the installation of an external meter.

* Bypass function is only supported on induction motors

Ready for digitalization

With SINAMICS G120X you master the elements.

He controls. He restrains. He ensures that water and air are always sorted, processed and transported in a controlled manner. For the benefit of all.

SINAMICS G120X – master the elements

See for yourself how SINAMICS G120X operates your well pump with outstanding simplicity, reliability and efficiency.

Reference

SINAMICS G120X in practice

The SINAMICS G120X is being successfully used in numerous projects all over the world. You can find an interesting selection of these projects here.

Full riding fun with SINAMICS G120X

• Robust design
• compact ready-to-install
• Easy setup – also through online access

With the twin safely through the tunnel

• Digital twin with HBI simulator
• SINAMICS G120X for perfect ventilation in the tunnel
• Engineering and programming in the TIA Portal
